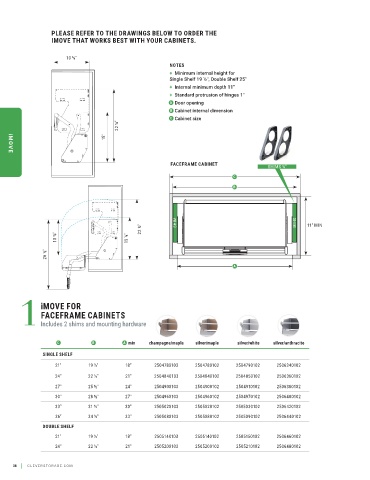

PLEASE REFER TO THE DRAWINGS BELOW TO ORDER THE
IMOVE THAT WORKS BEST WITH YOUR CABINETS.

10 ⅝"
NOTES
+ Minimum internal height for
Single Shelf 19 ½", Double Shelf 25"
+ Internal minimum depth 11"
+ Standard protrusion of hinges 1"
A + Door opening
B + Cabinet internal dimension
C + Cabinet size
22 ¼"

15"

iMOVE
FACEFRAME CABINET SHIMS ¾"
B
C
A
B 1

SHIM SHIM 11" MIN
22 ½"
13 ⅜" 15 ⅛"

26 ½"

A
A

1 iMOVE FOR

FACEFRAME CABINETS
Includes 2 shims and mounting hardware

C B A min champagne/maple silver/maple silver/white silver/anthracite

SINGLE SHELF

21″ 19 ½″ 18″ 2504780103 2504780102 2504790102 2506340102
24″ 22 ½″ 21″ 2504840103 2504840102 2504850102 2506360102
27″ 25 ½″ 24″ 2504900103 2504900102 2504910102 2506380102
30″ 28 ½″ 27″ 2504960103 2504960102 2504970102 2506400102
33″ 31 ½″ 30″ 2505020103 2505020102 2505030102 2506420102
36″ 34 ½″ 33″ 2505080103 2505080102 2505090102 2506440102
DOUBLE SHELF
21″ 19 ½″ 18″ 2505140103 2505140102 2505150102 2506460102
24″ 22 ½″ 21″ 2505200103 2505200102 2505210102 2506480102
